Model |
XJ-740 |
XJ-640 |
| Printing
technology |
Piezoelectric inkjet |
| Media |
Width |
210 to 1879 mm
(8.3 to 74 in.) |
210 to 1625 mm
(8.3 to 64 in.) |
| Thickness |
Maximum 1.0 mm (39 mil) with liner |
| Roll outer diameter |
Maximum 210 mm (8.3 in.) |
| Roll weight |
Maximum 47 kg
(103 lb.) |
Maximum 40 kg
(88 lb.) |
| Core diameter |
76.2 mm (3 in.) or 50.8 mm (2 in.) |
| Printing width *1 |
Maximum 1869
mm (73.6 in.) |
Maximum 1615
mm (63.6 in.) |
| Ink cartridges |
Types |
Roland ECO-SOL MAX cartridge |
| Capacity |
220 cc or 440 cc |

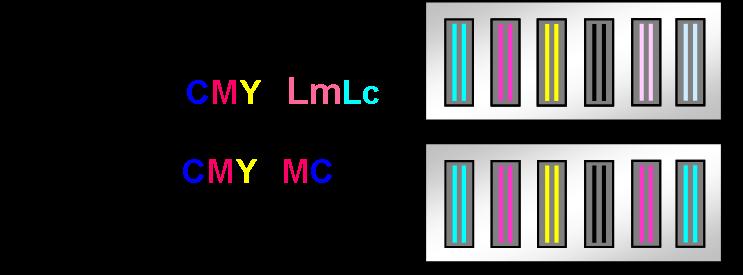

| Colors |
6
colors (cyan, magenta, yellow, black, light
cyan, and light magenta) or
¡@4 colors (cyan, magenta, yellow, and black) |
| Printing
resolution (dots per inch) |
Maximum 1440 dpi |
| Distance accuracy
*2 |
Error of less than ¡Ó0.3 % of distance traveled,
or ¡Ó0.3 mm, whichever is greater |

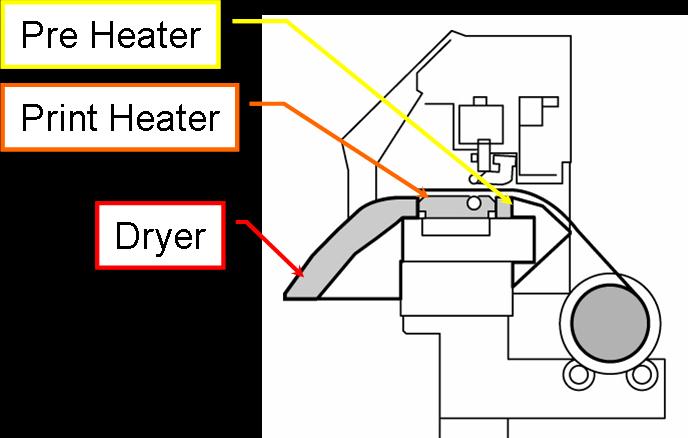

| Media heating
system *3 |
Print heater, setting range for the preset
temperature: 30 to 45¢XC (86 to 112¢XF)
¡@Dryer, setting range for the preset temperature: 30 to 50¢XC (86 to 122¢XF) |

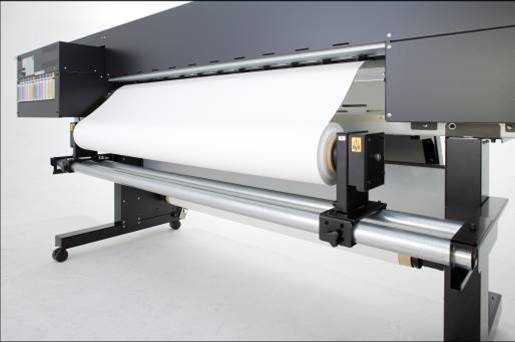

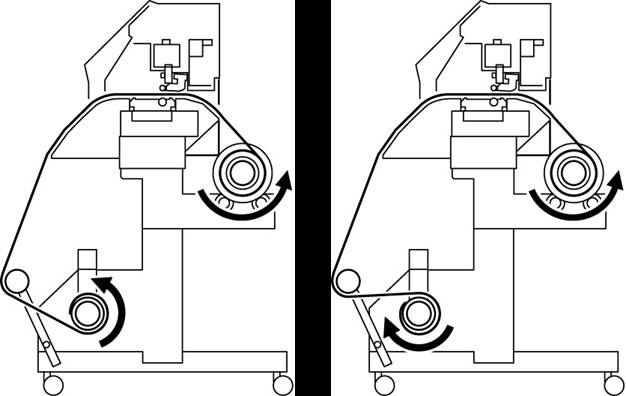

| Media take-up
system |
Roll outer diameter |
Maximum 250 mm (9.8 in.) |
| Roll weight |
Maximum 50 kg (110 lb.) |
| Connectivity |
Ethernet (10BASE-T/100BASE-TX, automatic
switching) |
| Power-saving
function |
Automatic sleep |
| Power
requirements |
AC
100 to 120 V ¡Ó10 %, 13 A, 50/60 Hz or
AC 220 to 240 V ¡Ó10 %, 7 A, 50/60 Hz |
| Power consumption |
During operation |
Approx. 1600 W |
| Sleep mode |
Approx. 47 W |
| Acoustic noise
level |
During operation |
64
dB (A) or less (according to ISO 7779) |
| During standby |
45
dB (A) or less (according to ISO 7779) |
| Dimensions (with
stand) |
3169 (W) x
1103 (D) x 1260 (H) mm
¡@(124.8 (W) x 43.4 (D) x 49.6 (H) in.) |
2948 (W) x
1103 (D) x 1260 (H) mm
¡@(116 (W) x 43.4 (D) x 49.6 (H) in.) |
| Weight (with
stand) |
225 kg (495
lb.) |
213 kg (469
lb.) |
| Environmental |
Power on |
Temperature: 15 to 32¢XC (59 to 90¢XF) (20¢XC
[68¢XF] or more recommended),
¡@humidity: 35 to 80 %RH (non-condensing) |
| Power off |
Temperature: 5 to 40¢XC (41 to 104¢XF), humidity:
20 to 80 %RH (non-condensing) |
| Accessories |
Stand, power cord, media clamps, media flanges,
replacement blade
¡@for separating knife, cleaning kit, software RIP, and User's Manual, etc. |
*1 The length of printing is
subject to the limitations of the program.
*2 At Roland PET film, print travel: 1 m, temperature:
25¢XC (77¢XF), humidity: 50 %, not assured when the print
heater or dryer is used.
*3 Warm-up is required after power-on. This may require
5 to 20 minutes, depending on the operating environment.
Depending on the ambient temperature and media width, it
may not reach a preset temperature.
¡@
|
Roland VersaWorks System
Requirements |
| Operation system |
Windows
Vista™Ultimate or Business (32-bit edition), or
Windows® XP Professional Service Pack 2, or
Windows® 2000 Service Pack 4 |
| CPU |
Pentium 4, 2.0 GHz or faster
recommended |
| RAM |
1 GB. 2 GB or more
recommended. |
| Free hard-disk
space |
40 GB for more recommended |
|
¡@
|
